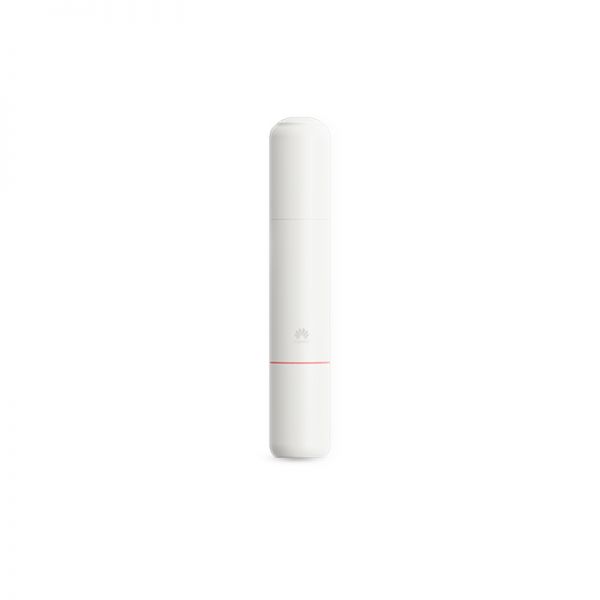

AirEngine 8760R-X1E - Huawei Outdoor Access Points
AirEngine 8760R-X1E - Huawei Outdoor Access Points
AirEngine 8760R-X1E Overview
Huawei Outdoor WiFi 6 AP, 802.11a/b/g/n/ac/ac Wave 2/ax, External Smart Antennas, PoE power supply: in compliance with IEEE 802.3bt, 1 x 10 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+
AirEngine 8760R-X1 and AirEngine 8760R-X1E are next generation, flagship, outdoor Access Points (APs) that fully comply with Wi-Fi 6 (802.11ax) standards. Available with either built-in (AirEngine 8760R-X1) or external (AirEngine 8760R-X1E) antennas, each offers 16 spatial streams, achieving a device rate of up to 10.75 Gbit/s, as well as supporting 8T8R on the 2.4 GHz frequency band.
Both APs provide uninterrupted outdoor coverage performance, are rated IP68 — indicating water, dust, dirt, and sand resistance — and have 6 kV/6 kA surge protection capabilities. As such, the APs fulfill all network requirements for outdoor coverage in high-density stadiums, town squares, pedestrian streets, amusement parks, and more.
Quick Spec
Table 1 shows the quick spec.
Model | AirEngine 8760R-X1E |
Power Input | PoE power supply: in compliance with IEEE 802.3bt |
Maximum Number of Users | ≤ 1024 (dual-radio); ≤ 1152 (triple-radio) |
Port | 1 x 10 GE electrical, 1 x GE electrical, and 1 x 10 GE SFP+ |
Built-in Bluetooth | BLE 5.0 |
Operating Temperature | –40°C to 65°C |
Antenna Type | External antennas |
MIMO: Spatial Streams | 2.4GHz(8x8:4)+5GHz(8x8:8); 2.4GHz(4x4:4)+5GHz(4x4:4)+5GHz(4x4:4) |
Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
Maximum Rate | 10.75 Gbit/s |
