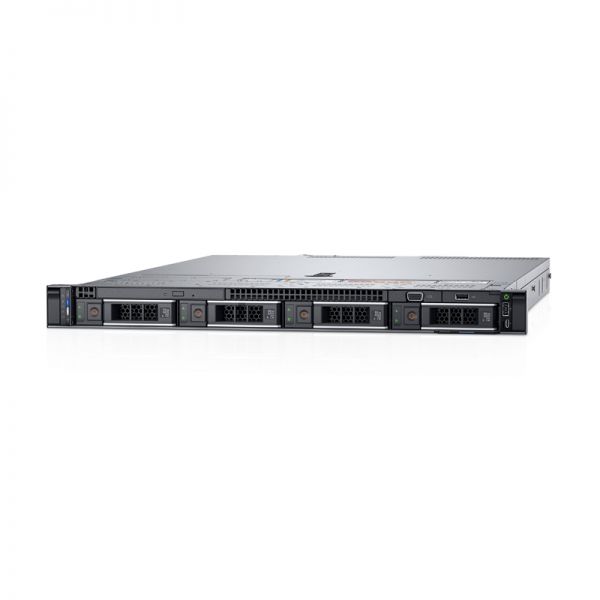

Dell 1U R440 4216/8G*1/600G SAS 10K*1/H330/DVD/550W*2/3.5-4

Dell PowerEdge R440 Specification

Processor

Up to two 2nd Generation Intel Xeon Scalable processors, up to 24 cores per processor

Memory

16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 1TB max

Storage controllers

Internal Controllers: PERC H330, H730P, H740P, HBA330

External Controllers: H840, 12 Gbps SAS HBA

Drive bays

Front drive bays: Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe SSD max 76.8TB or up to 4 x 3.5 SAS/SATA HDD max 64TB Optional DVD-ROM, DVD+RW

Power supplies

Bronze 450W (Cabled PSU), Platinum 550W (Hot plug PSU with full redundancy option)

Dimensions

Height: 42.8mm (1.68”)

Width: 434mm (17.08”)

Depth: 714.62mm (28.13”)

Bezel

Optional LCD or security bezel

Integrations and connections

OpenManage integrations: Microsoft System Center, VMware vCenter, BMC Truesight, Red Hat Ansible Modules

OpenManage connections: Nagios & Nagios XI, IBM Tivoli Netcool/OMNIbus, Micro Focus Operations Manager I

Security

TPM 1.2/2.0, TCM 2.0 optional

Cryptographically signed firmware

Silicon Root of Trust

Secure Boot

System Lockdown (requires OpenManage Enterprise)

System Erase

I/O & Ports

Network options

2 x 1GbE LOM + (optional) LOM Riser 2 x 1GbE or 2x 10GbE SFP+ or 2 x 10GbE BaseT

Front ports: 1 x Dedicated iDRAC Direct USB, 1 x USB 2.0, 1 x Video

Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x Video

Up to 2 x PCIe Gen 3 slots all x16

Supported operating systems

Canonical Ubuntu Server LTS

Citrix Hypervisor

Microsoft Windows Server LTSC with Hyper-V

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

VMware ESXi
