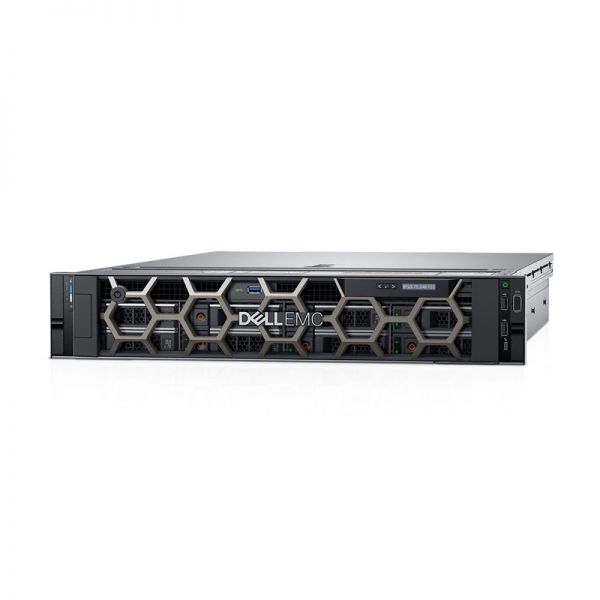

Dell 2U R740 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8

Dell PowerEdge R740 Specification

Processor

Up to two Intel Xeon Scalable processors, up to 28 cores per processor

Memory

24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max

Up to 12 NVDIMM, 192 GB Max

Supports registered ECC DDR4 DIMMs only

Storage controllers

Internal controllers: PERC H330, H730p, H740p, Software RAID (SWRAID) S140

Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB, 240 GB

External PERC (RAID): H840

12Gbps SAS HBAs (non-RAID): External- 12 Gbps SAS HBA (non-RAID), Internal- HBA330 (non-RAID)

Drive bays

Front drive bays: Up to 16 x 2.5” SAS/SATA (HDD/SSD) max 61TB or up to 8 x 3.5” SAS/SATA HDD max 96TB

Optional DVD-ROM, DVD+RW

Power supplies

Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W

48VDC 1100W, 380HVDC 1100W, 240HVDC 750W (China/Japan)

Hot plug power supplies with full redundancy

Up to 6 hot plugs fans with full redundancy

Dimensions

Form factor: Rack (2U)

Max depth: 715.5 mm

Embedded management

IPMI 2.0 compliant

iDRAC9 with Lifecycle Controller (Express, Enterprise)

Quick Sync 2 wireless module optional

Bezel

Optional LCD Bezel or Security bezel

OpenManage™ Software

OpenManage Enterprise

OpenManage Essentials

OpenManage Mobile

OpenManage Power Center

Integrations and connections

Integrations: Microsoft System Center, VMware vCenter, BMC Software

Connections: Nagios & Nagios XI, Oracle Enterprise Manager,

HP Operations Manager, IBM Tivoli Netcool/OMNIbus, IBM Tivoli Network Manager, CA Network and Systems Management

Security

TPM 1.2/2.0 optional Cryptographically signed firmware Secure Boot

System Lockdown

Secure erase

I/O & Ports

Network daughter card options

4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

Front ports: Video, 2 x USB 2.0, available USB 3.0, dedicated IDRAC Direct Micro-USB

Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port

Video card: VGA

Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots

Accelerator options

Up to three 300W or six 150W GPUs,

or up to four FPGAs.

Nvidia Tesla P100, K80, K40, Grid M60, M10,

P4, Quadro P4000, NVIDIA V100,

or Intel Arria® 10GX FPGA

Supported operating systems

Canonical Ubuntu LTS

Citrix XenServer

Microsoft Windows Server with Hyper-V

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

VMware ESXi
